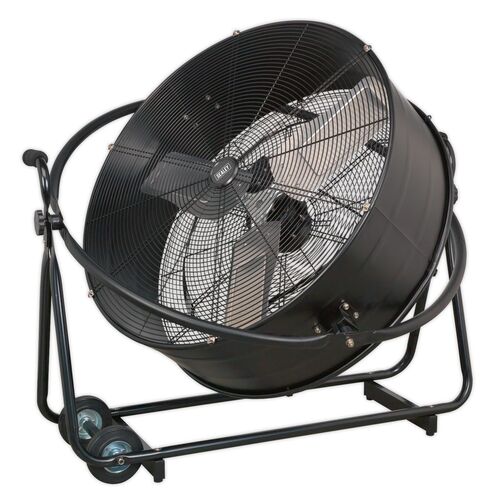

30″ Industrial Orbital Drum Fan

Experience Powerful Airflow with 30″ Industrial Orbital Drum Fan

• 30″ Industrial Orbital Drum Fan: A high-velocity, 2-speed fan designed for powerful air circulation in challenging environments such as industrial, commercial, agricultural, automotive workshops, and showrooms.
• Robust Construction: Built with a heavy-duty gauge steel casing, guard, and frame, this 30″ drum fan is designed to withstand the rigours of demanding settings.
• 360° Tilt Function: This innovative feature allows you to direct airflow anywhere on a 360° axis, ensuring optimal ventilation in your space.
• Safety First: The fan blades are carefully balanced and fully guarded to prioritize safety during operation.
• High Performance: With a maximum airflow of 283.4m³/min (10008cfm), the 30″ drum fan delivers outstanding performance for efficient air movement.
• Energy Efficient: With a power input of 118.6W and a service value of 2.4(m³/min)/W, this 30″ drum fan offers efficient operation, making it a cost-effective choice for large spaces.
• Quiet Operation: Despite its powerful performance, this fan operates at a sound power level of 78dB(A), ensuring it doesn’t disrupt your work environment.
• Dimensions: With a fan diameter of 760mm(30″), this fan is compact enough for easy placement while providing powerful air circulation.

30″ Industrial Orbital Drum Fan

Introducing the 30″ Industrial Orbital Drum Fan, designed for powerful air circulation in challenging environments. This high-velocity, 2-speed fan is ideal for industrial, commercial, agricultural, automotive workshop, and showroom applications, efficiently moving vast volumes of air.

Constructed with durability in mind, the fan features a robust, heavy-duty gauge steel casing, guard, and frame. The innovative 360° tilt function enables you to direct airflow anywhere on a 360° axis, ensuring optimal ventilation in your space.

Safety is prioritized with carefully balanced and fully guarded blades. Experience outstanding performance with a maximum airflow of 283.4m³/min (10008cfm). The fan is fitted with a 3-pin plug for hassle-free installation.

Upgrade your space with the 30″ Industrial Orbital Drum Fan for enhanced cooling and comfort.

Product Specifications:

The 30″ Industrial Orbital Drum Fan boasts a robust 760mm (30″) diameter, delivering an impressive maximum airflow of 283.4m³/min (10008cfm). With a power input of 118.6W and a current of 0.52A, it operates efficiently, achieving a service value of 2.4(m³/min)/W. The fan’s sound power level is 78dB(A), ensuring powerful performance with manageable noise levels. Weighing 23.04kg, it is sturdy yet portable, and its speed range of 800-900rpm across two settings provides versatile airflow control. The fan operates on a 230V supply and includes a one-year guarantee for added peace of mind.

Current	0.52A
Fan Diameter	760mm(30″)
Max Airflow	283.4m³/min(10008cfm)
Nett Weight	23.04kg
Power	118.6W
Max Fan Flow Rate (F)	283.4m³/min
Fan Power Input (P)	118.6W
Service Value (SV)	2.4(m³/min)/W
Standby Power Consumption (Psb):	0.0W
Fan Sound Power Level (Lwa)	78dB(A)
Max Air Velocity (c)	2.2m/s
Speed Range	800-900rpm
Speeds	2
Supply	230V
Guarantee	1 Year



Data Sheets:

Fan Operating Instructions



For any additional information, please contact our team for assistance.
