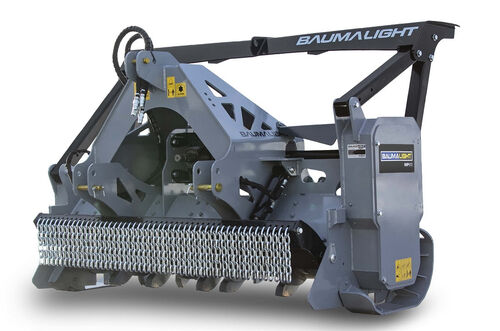

Baumalight 3PT Brush Mulchers for Land Clearing | Model MP572 | 50 HP-115HP | 72″ Cutting Width | For Tractor
$399.99
Product DescriptionBaumalight 3PT Brush Mulchers for Land Clearing | Model MP572 | 50 HP-115HP | 72″ Cutting Width | For TractorDESCRIPTIONMP572 Fixed Tooth Mulcher for Power Take Off on a Tractor. PLANNER TEETH STANDARD (540PTO)Our 500 series fixed tooth brush mulchers for 3-point hitch tractors are designed to maintain and…
Product Description
Baumalight 3PT Brush Mulchers for Land Clearing | Model MP572 | 50 HP-115HP | 72″ Cutting Width | For Tractor
DESCRIPTION
MP572 Fixed Tooth Mulcher for Power Take Off on a Tractor. PLANNER TEETH STANDARD (540PTO)
Our 500 series fixed tooth brush mulchers for 3-point hitch tractors are designed to maintain and clear fence lines on farms and entry level contractor work. The 500 series Baumalight Brush Fire brush mulchers will efficiently mulch heavy brush and small trees and are offered with two different types of teeth. The Planer style teeth feed their appetite for brush bit by bit, taking small bites and providing the most efficient mulching and cutting. The Ripper style teeth have more of a shredding mulching action. Their v-shaped design makes them less susceptible to impacts with hard objects like stones, making them the better choice when mulching below grade and in fence lines.
MP572 Fixed Tooth Mulcher for Power Take Off on a Tractor. PLANNER TEETH STANDARD 1000PTO
Our 500 series fixed tooth brush mulchers for 3-point hitch tractors are designed to maintain and clear fence lines on farms and entry level contractor work. The 500 series Baumalight Brush Fire brush mulchers will efficiently mulch heavy brush and small trees and are offered with two different types of teeth. The Planer style teeth feed their appetite for brush bit by bit, taking small bites and providing the most efficient mulching and cutting. The Ripper style teeth have more of a shredding mulching action. Their v-shaped design makes them less susceptible to impacts with hard objects like stones, making them the better choice when mulching below grade and in fence lines.
Key Features
REPLACEABLE BOLT-IN LINER
Save time by easily replacing the AR400 steel wear plates on the ms960 without needing to remove the rotor.
WIRE PROTECTION KIT
If you are mulching and you catch some old fence wire, it can really cause damage to the unit if the wire slips over the edge of the rotor and gets wrapped around the shaft. The wire can get bunched against the bearings, causing major damage. Our wire protection kit contains a welded raised area on the end of the rotor that protects the shaft and prevents wire from getting in.
CHAIN CURTAIN
The rear of the unit is guarded by a 3/8″ thick chain curtain so standing brush enters and mulched debris exits.
EASY ACCESS GREASE FITTINGS
Reduce your regular maintenance time by easily greasing the bearings on the MP972 from outside the frame. No tools required.
SLIP CLUTCH
To protect the gearbox and drive system, Baumalight PTO mulchers come with a slip clutch. Automatically disengaging the clutch at a predetermined torque.
HEAVY DUTY GEARBOX
Heavy duty gearbox for high performance and better mulching power and long life.
REINFORCED BELT
A heavy duty reinforced belt delivers the force from the gear box to the rotor. This offers protection from the shocks inherent in mulching.
GREASEABLE PINS
Baumalight mulchers feature grease pins on all pivot points, reducing the risk of equipment damage and providing long life and easy servicing.
HARDENED STEEL BUSHING
Spring Bushing made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.
ADJUSTABLE BELT TENSIONER
The adjustable belt tensioner ensures the proper tension of your belts, with no extra idler wheel that could wear out. Simply loosen the bolts and raise the motor mount to tighten the belt.
DIRECTIONAL FELLING HOOK
Built into the pusher bar, the directional felling hook will directionally control wayward trees, sprawling clumps and low hanging limbs.
DOUBLE SHIELDED HOSES
All hoses are sleeved for operator and hose protection. The Connecting hoses are sleeved and wrapped in hose armour for double protection.
HEAVY DUTY FRAME
Now completely redesigned for the 900 series Brush Mulcher, the heavy duty steel frame is constructed with T1 alloy tool steel sheet metal.
BACK HYDRAULIC DOORS
The MP972 is the only Baumalight mulcher with an adjustable back door, this can be raised for forward driving with ground engagement and lowered for backward driving into the brush.
FRONT HYDRAULIC DOOR
Equipped with front and rear hydraulically controlled debris doors. They are controlled from the cab to give the operator more control of the mulching action. When front door is closed, the mulch debris is more controlled and a finer mulch is produced. Open the rear door to better attack stubborn brush by exposing more of the rotor.
INTEGRATED PUSH BAR
When push comes to shove, the integrated push bar helps control
POWDERED COATED
Our powder coat finish is much tougher than conventional paint to stand up to the rigors of mulching and helps prevent rusting.
6 FREE TEETH
All MP972 Brush Mulchers come with a free set of 6 replacement teeth. These replacement teeth can be convenienty stored in the enclosed spare tool compartment.
HOST MACHINE
MP572/540PTO
| JOHN DEERE 4066R | |
| JOHN DEERE 5075E | |
| JOHN DEERE 5075M | |
| JOHN DEERE 5090M | |
| JOHN DEERE 5100E | |
| JOHN DEERE 5100M | |
| JOHN DEERE 5115M | |
| JOHN DEERE 5125M |
Detailed Specifications
MP572/540PTO
| Part #: | MP572/540PTO |
| Mfg: | BAUMALIGHT |
| Category: | TRACTOR ATTACHMENTS |
| SubCategory: | MULCHER TRACTOR 3PT HITCH |
| Industry: | AGRICULTURAL |
| Machine Size: | 50HP-115HP |
| Attachment Size: | 72″ CUTTING WIDTH |
MP572/1000PTO
| Part #: | MP572/1000PTO |
| Mfg: | BAUMALIGHT |
| Category: | TRACTOR ATTACHMENTS |
| SubCategory: | MULCHER TRACTOR 3PT HITCH |
| Industry: | AGRICULTURAL |
| Machine Size: | 50HP-115HP |
| Attachment Size: | 72″ CUTTING WIDTH |
Comparison Chart
| Specification | MP348 | MP360 | MP560 | MP572 | MP972 | Large Shaft |
|---|---|---|---|---|---|---|
| Path Width | 60″ | 72″ | 75″ | 87″ | 84″ | D002134 |
| Rotor Width | 48″ | 60″ | 60″ | 72″ | 72″ | |
| Maximum Engine HP | 50 | 55 | 75 | 125 | 135 | 90 – 155 PTO HP |
| Maximum PTO HP | 40 | 45 | 65 | 115 | 125 | Do not exceed 165 Engine HP |
| Minimum Engine HP | 25 | 30 | 45 | 50 | 90 | |
| Cutting Depth | Level | Level | 1.5″ Above to 1″ Below Grade | 1.5″ Above to 1″ Below Grade | Level to 2″ Below Grade | |
| Cutting Style | High Speed Teeth | High Speed Teeth | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Double Tipped | |
| Tooth Part Number | H3000 | H3000 | P5000 | P5000 | R9000 | |
| Number of Cutters | 60 | 74 | 92 | 112 | 43 | |
| Rotor Shaft Size | 2″ | 2″ | 2″ | 2″ | 2″ | |
| Rotor Diameter (Tool Tips) | 15″ | 15″ | 15″ | 15″ | 18.5″ | |
| Rotor Weight (With Tools) | 230 lbs | 315 lbs | 575 lbs | 700 lbs | 1,105 lbs | |
| Hitch Size | CAT 1 | CAT 1 | CAT 2 | CAT 2 | CAT 2 or 3 | |
| Quick Hitch Compatibility | Yes | Yes | No | No | No | No |
| Drive Speed | 540 | 540 | 540 | 1,000 | 1,000 | |
| Drive Speed Options | 540 (Max Engine HP 110) | 540 (Max Engine HP 110) | ||||
| Gearbox Spline Size | 1-3/8″ | 1-3/8″ | 1-3/8″ | 1-3/8″ | 1-3/8″ | |
| Tractor End Spline Size | 1-3/8″ | 1-3/8″ | 1-3/8″ | 1-3/8″ | 1-3/8″ | 1.75″ 20-spline |
| System Protection | Slip Clutch | Slip Clutch | Slip Clutch | Slip Clutch | Slip Clutch | |
| Unit Weight | 1,050 lbs | 1,200 lbs | 2,145 lbs | 2,500 lbs | 3,200 lbs | |
| Hydraulic Requirements | Not Applicable | Not Applicable | 1 Remote | 1 Remote | 2 Remotes |
Manuals & Documents
The Product Manual
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and “wear parts” including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!
Videos
SERVICE AND INSTRUCTIONAL VIDEOS
Determining PTO Shaft Length to attach 3PH Attachment to Tractor
When to Replace R9000 Teeth
How to Replace Rotor Bearing on 900/1100 Series Brush Mulcher
How to Replace Rotor Shaft on 900/1100 Series Brush Mulcher
Troubleshooting Vibration on Brush Mulcher
